LYNCCN WAY100.86-V10 Hydraulic Press Brake Tooling Die 86 Angle Single V Die
| Place of Origin | Anhui, China |
|---|---|
| Marka adı | LYNCCN |
| Sertifika | ISO9001 |
| Model Number | WAY100.86 |
| Minimum Order Quantity | 835mm*3pcs |
| Fiyat | Anlaşılabilir |
| Packaging Details | Wooden box |
| Delivery Time | 30 days |
| Payment Terms | T/T |
| Supply Ability | 500 Piece/Pieces per Month |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları

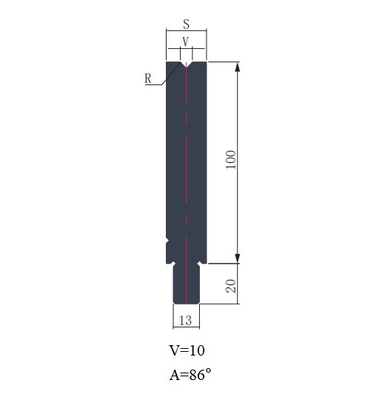

| Product Name | WAY100.86 V10 Hydraulic Press Brake Tooling 86 Angle Single V Die | V Opening | 10mm |
|---|---|---|---|
| Product Category | Press Brake Die | Width | 20mm |
| Hardness | HRC48-52 | Height | 120mm |
| Angle | 86° | Material | 42CrMo |
| Application | Used for Press Brake, Industrial, Sheet Metal Bending | Packing | Wooden case |
| Vurgulamak | Hydraulic Press Brake Tooling,86Angle Press Brake Tooling Die,Single V Press Brake Die |
||
Ürün Açıklaması
Press brake tooling consists of a punch and a die. The die supports the sheet while the punch bends it. They are essential for precision metal forming.
Technical Parameters:
| Product Type | Press Brake Die |
| Brand | LYNCCN |
| Length | 550mm/500mm |
| V Opening | V10 |
| Width | 20mm |
| Height | 120mm |
| Angle | 86° |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Essential in the automotive industry, press brake tooling forms structural and exterior components such as chassis parts, support beams, and inner panels with high strength and repeatability.
