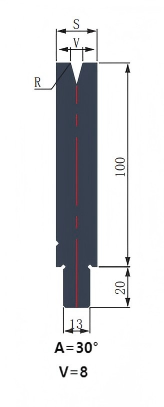

LYNCCN WAY100.30 V8 Custom Hydraulic Press Brake Tooling Single V Die
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | LYNCCN WAY100.30 V8 Özel Hidrolik Abkant Alet Tek V Kalıp | Genişlik | 20 mm |
|---|---|---|---|
| Ürün Kategorisi | Pres fren kalıbı | V Açılış | 8mm |
| Açılış | 30 ° | Yükseklik | 120mm |
| Marka | Lynccn | sertlik | HRC50 ± 2 |
| Malzeme | 42CRMO | Ambalaj | Ahşap Kutu |
| Vurgulamak | Hydraulic press brake die,custom press brake die,press brake v die |
||
Ürün Açıklaması
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.
Technical Parameters:
| Product Type | Press Brake Die |
| Length | 550mm/500mm |
| Brand | LYNCCN |
| Width | 20mm |
| Height | 120mm |
| Angle | 30° |
| V Opening | 8mm |
| Hardness | HRC48-52 |
| Heat Treatment | Induction Hardening |
| Material | 42CrMo |
| Max. Load | 40T/M |
| Packing | Wooden Box |
| Delivery Time | 30 days |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Press brake tooling are widely used in sheet metal fabrication, enabling precise bending for enclosures, brackets, and panels across multiple industries including electronics, electrical, and custom parts manufacturing.
