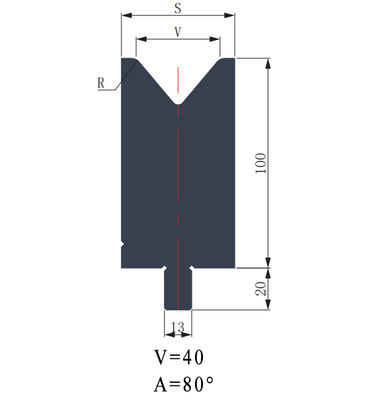

LYNCCN WAY100.80 V40 Euro Type Single V Die Press Brake Tooling
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ürün adı | WAY100.80 V40 Abkant Pres Tek V Kalıp | V-açılış | V40 |
|---|---|---|---|
| Isıl İşlem | İndüksiyon sertleştirme | Açılış | 80 ° |
| sertlik | HRC50 ± 2 | Genişlik | 55mm |
| Maks. Yük | 100t/m | Yükseklik | 120mm |
| Ambalaj | Ahşap Kutu | Malzeme | 42CRMO |
| Vurgulamak | custom press brake dies,single v die for press brake |
||
Ürün Açıklaması
Product Description:
A press brake die is a tool used in a press brake machine to bend sheet metal into desired angles and shapes. It consists of a punch (upper tool) and a die (lower tool), which work together to form the metal. Different die shapes enable various bending techniques like V-bending, U-bending, or hemming.
This product is a single V die, CNC Press Brake tooling, CNC Hydraulic Press Brake tool, and Hydraulic Press Brake Machine tooling.
Technical Parameters:
| Product Type | Press Brake Single V Die |
| V-opening | V40 |
| Angle | 80° |
| Width | 55mm |
| Height | 120mm |
| Material | 42CrMo |
| Length | 550mm/500mm |
| Hardness | HRC50±2 |
| Heat Treatment | Induction Hardening |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation:
500mm
515mm
550mm Segmentation
Applications:
Our hydraulic CNC press brake punches are suitable for a variety of application occasions and scenarios. They are commonly used in metalworking and fabrication industries for bending and shaping metal sheets. Our products are compatible with a range of press brake machines and are widely used in industries such as aerospace, automotive, construction, and shipbuilding.
